3. Capture program

Back to contents · 中文

3.1 Code layout

capture/
├── record_ego_wuji.py              Wuji rig entry point (Linux)
├── record_ego_manus.py             MANUS rig entry point (Windows)
├── record_ego_app.py               device connection, web server and recording flow
├── record_ego_page.html            control page
├── tracker_sender_windows.py       Windows tracker sender (Wuji rig)
├── visualize_session.py            replay one recording
├── record_ego/                     config, recording control, writing, upload
├── devices/                        device drivers
├── network_bridge/                 network protocol for tracker data
├── ManusClient/                    MANUS UDP sender (obtain separately; see the README in the folder)
├── wuji_calibration/               import and export of Wuji calibration bundles
├── scripts/
│   ├── setup_wuji_gloves.sh        Wuji glove network setup and checks
│   ├── wuji_calibration_tool.py    Wuji glove calibration and bundle export
│   ├── start_tracker_sender.ps1    starts the Windows tracker sender
│   ├── wuji_launch.sh              one-command Wuji launch (edit for your machine)
│   ├── rclone_linux.sh             upload data (Linux)
│   └── rclone_win.bat              upload data (Windows)
└── task_setting/example.json       task list example

3.2 Task list

--task-setting points to a JSON file holding an array of task names. The control page steps through them, and the task name goes into the recording name and session.json:

["物料称量", "萃取", "开反应", "旋蒸", "烘箱取料", "过柱"]

3.3 Starting a capture

Wuji rigMANUS rig

Start the capture program on Linux first:

cd capture && source .venv/bin/activate
python record_ego_wuji.py \
  --task-setting task_setting/example.json \
  --tracker-host 0.0.0.0 --tracker-port 8766 \
  --save-dir ./data

Or edit scripts/wuji_launch.sh for your machine and use it.

Then start the tracker sender on Windows, from capture/:

.\scripts\start_tracker_sender.ps1 -LinuxHost <LINUX_IP> -Port 8766
# or
python tracker_sender_windows.py --host <LINUX_IP> --port 8766

• Port (and token, if set) must match on both sides. If the link drops, the Windows side reconnects every 2 seconds and Linux keeps recording video and gloves.
• Windows only needs to let Python reach the LAN; no inbound port is needed.
• Recording can also be controlled from the Windows terminal: r starts, e stops and saves, Esc turns off key listening (poses keep flowing). The countdown follows Linux's --record-countdown unless overridden with -Countdown / --countdown; use -NoKeyboard / --no-keyboard to disable keys.

Start MANUS Core and the UDP sender as in 2.4, then:

python record_ego_manus.py \
  --task-setting task_setting/example.json \
  --manus-ip 0.0.0.0 --manus-port 9000

Trackers are read on the same PC. Without trackers, add --no-tracker; the camera and gloves still record.

3.4 Control page

The control page is at http://127.0.0.1:8770/ by default. To open it from another computer, add --host 0.0.0.0 and open the port.

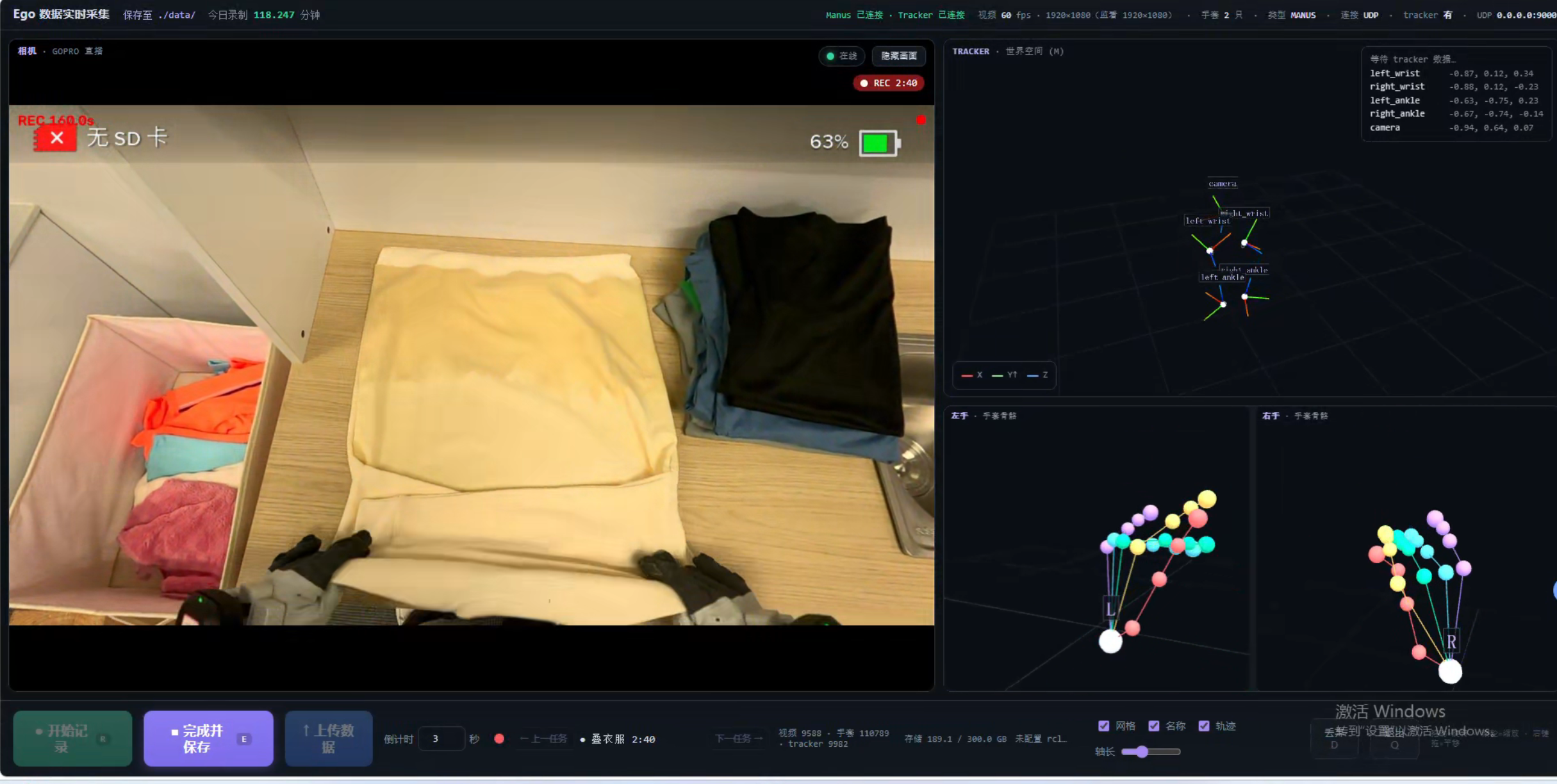

MANUS rig

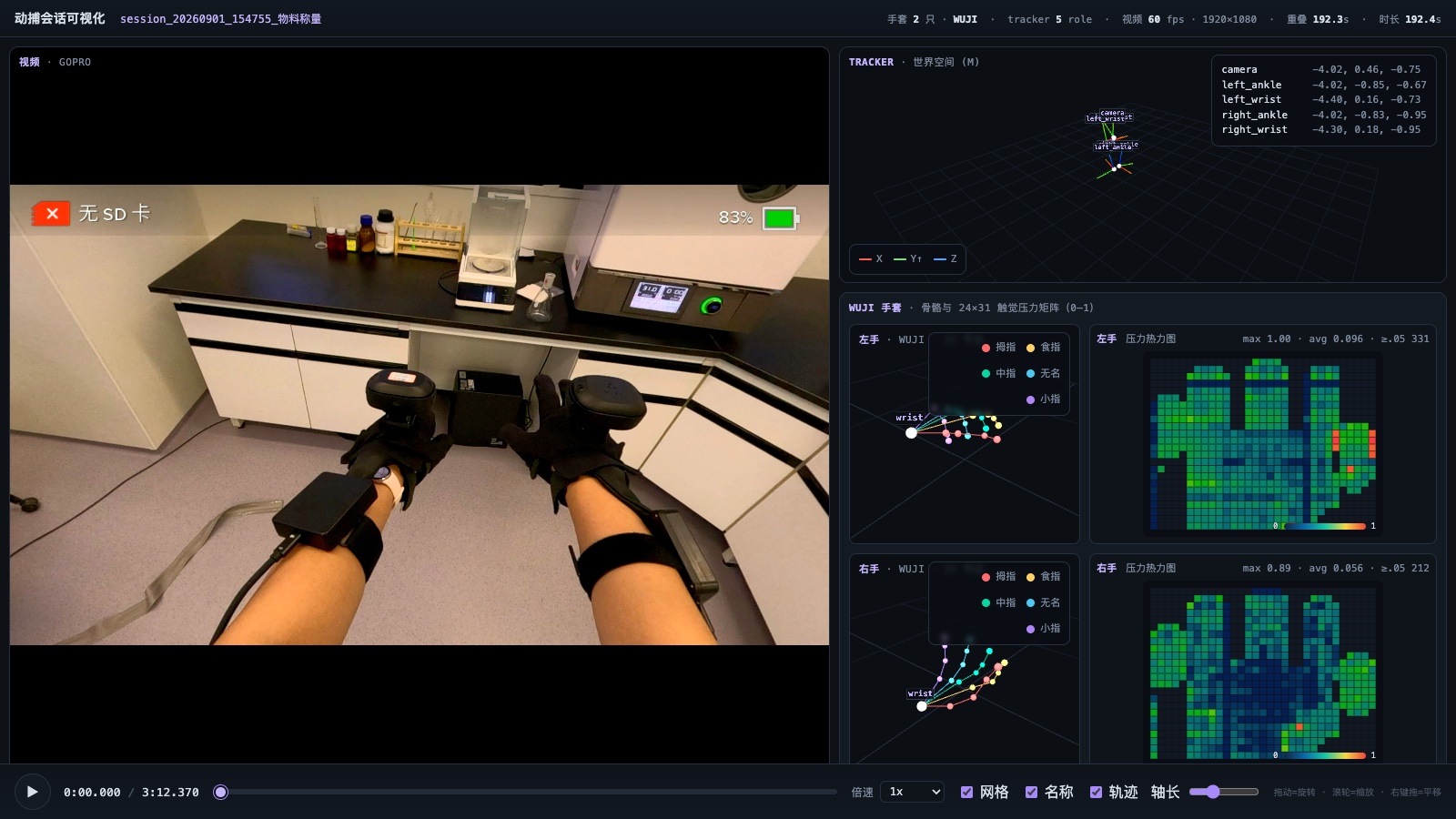

Wuji rig

Both pages share one layout: the GoPro view on the left, the five tracker poses and coordinates at the top right, both hand skeletons at the bottom right (plus 24 × 31 touch heat maps on the Wuji rig), and the controls at the bottom. On the Wuji page the camera preview is scaled to 640 × 360 by default (--preview-width, --preview-height); the recording resolution is unaffected.

The keys are the same as in the terminal:

Key	Action
r	Start recording after a countdown (3 seconds by default, adjustable on the page)
e	Stop and save
d	During the countdown, cancel; while recording, stop and discard without writing
q	Quit; an unsaved recording is discarded

3.5 Common options

Option	Default	Meaning
--cam-device	0	Capture-card index or /dev/video* path
--cam-width --cam-height --cam-fps	2560 1440 60	Requested resolution and frame rate; the card's actual output is recorded in session.json
--video-codec --crf --h264-preset --h264-threads	h264 20 ultrafast 4	Real-time H.264 encoding
--no-camera		No camera
--wuji-calibration / --no-wuji-calibration	wuji_calibration/calibration_bundle.zip	Wuji glove calibration bundle
--tracker-host --tracker-port --tracker-token	0.0.0.0 8766 empty	Tracker receiver (Wuji rig)
--tracker-record-fps	120	Tracker write cap (Wuji rig)
--tracker-sample-fps	90	Tracker sampling rate (MANUS rig)
--no-tracker		No trackers
--save-dir	./data	Folder for recordings
--record-countdown	3	Countdown before recording (seconds)
--rclone-remote --rclone-config	empty	Upload target (optional)
--storage-limit-gb --storage-check-interval	50 30 (minutes)	Above the limit, upload and clean up automatically
--host --web-port	127.0.0.1 8770	Control page address and port

Full lists: python record_ego_wuji.py --help and python record_ego_manus.py --help.

3.6 Upload (optional)

Recordings stay on the local --save-dir by default. When local space runs short, set up an S3-compatible object store (Aliyun OSS, Tencent COS, AWS S3 and so on) and upload with rclone:

1. Install rclone;
2. Run rclone config to create a remote, for example myremote, with the storage type, endpoint and keys;
3. Check that rclone lsd myremote:<bucket> lists the contents.

Then upload in either of two ways:

• From the capture program. Start it with --rclone-remote myremote:<bucket>/ego_data (or set EGO_RCLONE_REMOTE) and the page's upload button becomes active; it runs rclone copy and skips files already on the remote. When the data folder exceeds --storage-limit-gb (0 disables the check), the program runs rclone move and deletes only local files confirmed as uploaded. Use --rclone-bin if rclone is not on PATH and --rclone-config if the config file is elsewhere.
• With the scripts. Set LOCAL_PATH and REMOTE_PATH at the top of scripts/rclone_linux.sh or scripts/rclone_win.bat and run it. For filtering or deleting local files after upload, edit the single rclone command in the script.

Without rclone, the upload button is inactive and nothing is cleaned up when the storage limit is exceeded, so keep an eye on disk space.

3.7 Common problems

Symptom	Check in order
Linux keeps waiting for the tracker	The Windows --host is Linux's LAN IP (not 127.0.0.1); port and token match; Test-NetConnection <LINUX_IP> -Port 8766 succeeds; Linux firewall; both machines on one subnet; Linux was started first
No tracker poses on Windows	Dependencies installed; SteamVR is the active OpenXR Runtime; trackers paired with roles assigned (not Handheld object)
Linux cannot find the Wuji gloves	wuji-sdk installed and nothing else holding the SDK; setup_wuji_gloves.sh --check; glove serials match the current SDK user's calibration
